Hexagonal Mesh is a hexagonal cellular mesh grating with punched lances which is specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, which prevents spalling and cracking. As a result of hex metal’s strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration.
Flex Hexsteel
Flex Hexmetal is the direct counterpart of Hex metal. It performs all the same functions in reinforcement of thin wall refractory linings, while its' design allows free form rolling to very small diameters. Hex metal becomes impractical when the section of plant being protected is of small diameter. The free rolling capabilities of Flex metal allows plant as small as 150 mm to be lined. Typical applications include Air Distributors, Cyclone Dip legs, Fan Cases, or any other plants where the practicality of free rolling material is beneficial to maintenance activities.
Refractory Anchors
Wire Formed Anchors are configured to suit all light, medium and dense refractories in providing maximum support during refractory application and maximum retention of refractories during plant service. Consideration is given to expansion, heat transfer, method of application, environmental conditions and design of host unit for individual applications. Anchors are designed for Manual and Semi-Automatic Welding.
The range of applications is limited only by the structural strength of the anchor section. The maximum section size of wire formed anchors is 3/8" (9.5mm). Typical applications include most process plant including furnaces, ductwork, heaters or reactors.
HESLY’s Plate Formed Anchors
Plate Formed Anchors are divided into Metallic Anchors and Ceramic Supports. The Metallic Anchors are designed typically for ceramic fiber and for light or medium weight refractories, again configured to provide maximum retention during plant service. The Ceramic Anchor Supports "C" Clips are designed to retain most standard pattern ceramic anchors (Scissor Clip types are available as wire formed) Mainly for light and medium weight duties, their typically small cross section provides low heat transfer with section size providing easy manual or semi-automatic welding. "C" Clips retain ceramic anchors used for anchoring moldable refractories.
HESLY’s Rod Formed Anchors
Rod Formed Anchors / Studs (larger than 3/8" diameter) Heavy weight anchors are used only in the most arduous conditions. They are designed to provide support and attachment of refractory pre-cast sections to plant steelwork, and provide an effective anchoring system in high stress situations. Their design shape minimizes and controls heat transfer and thus provides maximum strength at elevated temperatures. Refractory lining situations that have attendant high live loads occur in plant such as Rotary Kilns, where deep roof and side wall lining of dense refractories require maximum support during operating conditions or heavy weight pre-cast blocks are retained by bolt through, weld on and slip on systems.
HESLY hexmesh Typical Service Temperature:
| Anchorage Material | Chemical Composition | Typical Service Temperature |
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ |
Features of Stainless Steel which used for Hex Mesh:
| SS | Features |
| 304 | Good heat resistance ,corrosion resistance ,strength at low temperature and mechanical properties, good hot working performance for example punching,bending,etc , no heat treatment influence phenomenon(nonmagnetic,U-96°C-800°C). |
| 304L | As one kind of low carbon SS304,In the general, the similar corrosion resistance with SS 304 .But after welding or in eliminating stress, the outstanding ability of the resistance to corrosion of grain boundaries In under the condition of no-heat treatment, maintain good corrosion resistance,Used in -196°C~800°C. |
| 316 | Owing to add to Mo,So the corrosion resistance of atmospheric and high temperature strength are very good,Can be used in harsh conditions ,Processing sclerosing optimal (nonmagnetic). |
| 316L | As one kind of low carbon series SSS316, in addition to the same feature of SS316, Optimal resistance to corrosion of grain boundaries |
| 310S | As heat-resistant part in the under the temperature 1100°C,Oxidation stability steel ,etc |
HESLY hex metal ordinary specs:
| HESLY-hex Metal ordinary specifications |
| ITEM | SPECS | B | A | AF |
| 1 | 1.2 X 10 X 50mm | 1.2mm | 10mm | 40mm |
| 2 | 1.2 X 15 X 50mm | 1.2mm | 15mm | 50mm |
| 3 | 1.2 X 20 X 50mm | 1.2mm | 20mm | 50mm |
| 4 | 1.5 X 10 X 50mm | 1.5mm | 10mm | 50mm |
| 5 | 1.5 X 15 X 50mm | 1.5mm | 15mm | 50mm |
| 6 | 1.5 X 20 X 50mm | 1.5mm | 20mm | 50mm |
| 7 | 1.8 X 15 X 50mm | 1.8mm | 15mm | 50mm |
| 8 | 1.8 X 20 X 50mm | 1.8mm | 20mm | 50mm |
| 9 | 1.8 X 25 X 50mm | 1.8mm | 25mm | 50mm |
| 10 | 2.0 X 15 X 50mm | 2.0mm | 15mm | 50mm |
| 11 | 2.0 X 20 X 50mm | 2.0mm | 20mm | 50mm |
| 12 | 2.0 X 25 X 50mm | 2.0mm | 25mm | 50mm |
| 13 | 2.0 X 30 X 50mm | 2.0mm | 30mm | 50mm |
| 14 | 2.0 X 30 X 80mm | 2.0mm | 30mm | 80mm |
| Remark | A/F | Min: 40mm Max: 100mm |
| | MATERIAL | A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
HESLY Refractory Hexmetal

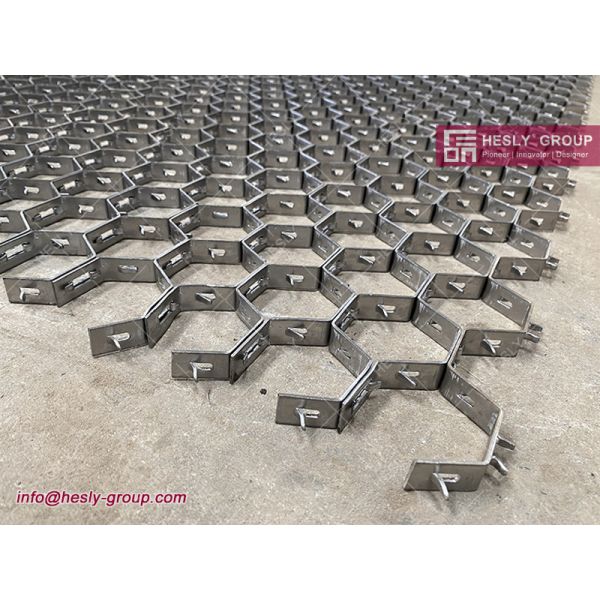

Hexsteel for refractory lining  |  |
